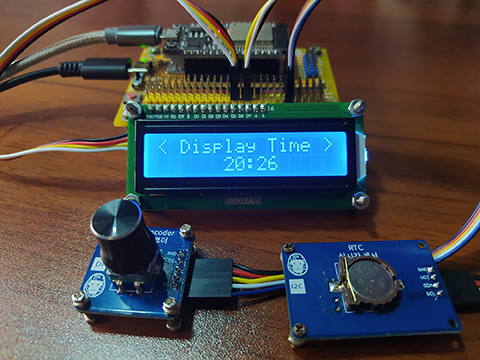

030 – MicroPython TechNotes: DS3231 RTC

# More details can be found in TechToTinker.blogspot.com
# George Bantique | tech.to.tinker@gmail.com

from machine import Pin
from machine import SoftI2C
from ds3231 import DS3231

i2c = SoftI2C(scl=Pin(22), sda=Pin(21), freq=400000)
ds = DS3231(i2c)


# The following line of codes can be tested using the REPL:
# 1. Get the current time
# ds.get_time()
# Return:
#        YYYY, MM, DD, HH, mm, ss, WD, YD
#        YYYY - year
#          MM - month
#          DD - day
#          HH - hour in 24 hour
#          mm - minutes
#          ss - seconds
#          WD - week day: 1=Monday, 7=Sunday
#          YD - day of the year
# 2. Set the current time
# ds.set_time(YYYY, MM, DD, HH, mm, ss, WD, YD)
# ds.set_time(2021, 04, 20, 08, 30, 00, 02, 00)

# More details can be found in TechToTinker.blogspot.com
 # George Bantique | tech.to.tinker@gmail.com
 from machine import Pin
 from machine import SoftI2C
 from time import sleep_ms
 from time import ticks_ms
 from ds3231 import DS3231
 from i2c_lcd import I2cLcd
 from rotary_irq import RotaryIRQ
 # 1. RTC object instantiation:
 rtc_i2c = SoftI2C(scl=Pin(22), sda=Pin(21), freq=400000)
 ds = DS3231(rtc_i2c)
 # DS3231 tuple:
 #    YYYY, MM, DD, HH, mm, ss, WD, YD
 #    YYYY - year
 #     MM - month
 #     DD - day
 #     HH - hour in 24 hour
 #     mm - minutes
 #     ss - seconds
 #     WD - week day: 1=Monday, 7=Sunday
 #     YD - day of the year
 # 2. Onboard LED object instantiation:
 led = Pin(2, Pin.OUT)
 # 3. LCD object instantiation:
 lcd_i2c = SoftI2C(scl=Pin(22), sda=Pin(21), freq=400000)
 lcd = I2cLcd(lcd_i2c, 0x20, 2, 16)
 # 4. Rotary Encoder object instantiation:
 r = RotaryIRQ(pin_num_clk=32,
        pin_num_dt=33,
        min_val=0,
        max_val=19,
        reverse=True,
        range_mode=RotaryIRQ.RANGE_WRAP)
 rsw = Pin(34, Pin.IN)
 val_old = r.value()
 menus = ['Display Date',
      'Display Time',
      'Display Wkday',
      'Edit Year',
      'Edit Month',
      'Edit Day',
      'Edit Hour',
      'Edit Minute',
      'Edit Wkday']
 wkdays = ['Monday',
      'Tuesday',
      'Wednesday',
      'Thursday',
      'Friday',
      'Saturday',
      'Sunday']
 months = ['January',
      'February',
      'March',
      'April',
      'May',
      'June',
      'July',
      'August',
      'September',
      'October',
      'November',
      'December']
 working_idx = 0 # holds the menu index
 year = 0    # holds the year
 month = 0    # holds the month <1=January, 12=December>
 day = 0     # holds the day
 hour = 0    # holds the hour in 24 hour <0=12AM, 23=11PM>
 minute = 0   # holds the minue <0-59>
 wkday = 0    # holds the day of the week <1=Monday, 7=Sunday>
 isPress = False # flag for the config / normal mode
 isSaved = False # flag for determining if the configuration is save
 # get the current time
 prev_time = ticks_ms()
 # Prints a string of characters in the LCD
 #  text - the string you want to print
 #  x - x position
 #  y - y position
 def print_line(text, x, y):
   # Calculate the start of character display
   start = 8-len(text)//2
   # Calculate the end of character display
   end = start + len(text)
   # Clears characters before the start position
   lcd.move_to(x,y)
   for i in range(x,start,1):
     lcd.putchar(' ')
   # Clears characters after the end position
   lcd.move_to(end,y)
   for i in range(end,15,1):
     lcd.putchar(' ')
   # Print the desired display
   lcd.move_to(start,y)
   lcd.putstr(text)
 # Performs updating the menu display
 # according to the rotary encoder value
 def process_menu(rotary_dir=0):
   # Global variables here if needed to be edited,
   # else, no need to declare as global here.
   global working_idx
   global year
   global month
   global day
   global hour
   global minute
   global wkday
   # If the rotary value is less than -1 ie:-2,-3,etc:
   #  rotary value = -1
   # If the rotary value is more than 1:
   #  rotary value = 1
   # Else
   #  rotary value is not modified
   if rotary_dir < -1:
     rotary_dir = -1
   elif rotary_dir > 1:
     rotary_dir = 1
   # DISPLAY ONLY MODE
   if isPress==False:
     # Calculate the working index
     # based on rotary encoder value.
     working_idx += rotary_dir
     if working_idx < 0:
       working_idx = 0
     elif working_idx > len(menus) - 1:
       working_idx = len(menus) - 1
     # Check if there is menu available in left
     # If true, display < character
     # If false, display none
     lcd.move_to(0,0)
     if working_idx==0:
       lcd.putchar(' ')
     else:
       lcd.putchar('<')
     # Print the menu based on working index value
     print_line(menus[working_idx],1,0)
     # Checks if there is menu available in right
     # If true, display > character
     # If false, display none
     lcd.move_to(15,0)
     if working_idx==len(menus)-1:
       lcd.putchar(' ')
     else:
       lcd.putchar('>')
     # ------------------------
     # Process menu selections:
     if working_idx==0:
       # Display Date
       t = ds.get_time()
       date = '{:04d}-{:02d}-{:02d}'.format(t[0],t[1],t[2])
       print_line(date,1,1)
     elif working_idx==1:
       # Display Time
       t = ds.get_time()
       time = '{:02d}:{:02d}'.format(t[3],t[4])
       print_line(time,1,1)
     elif working_idx==2:
       # Display Week Day
       t = ds.get_time()
       day = wkdays[t[6]-1]
       print_line(day,1,1)
     elif working_idx==3:
       # Display year
       t = ds.get_time()
       year=t[0]
       print_line(str(year),1,1)
     elif working_idx==4:
       # Display month
       t = ds.get_time()
       month=t[1]
       print_line(months[month-1],1,1)
     elif working_idx==5:
       # Display day
       t = ds.get_time()
       day=t[2]
       print_line(str(day),1,1)
     elif working_idx==6:
       # Display hour
       t = ds.get_time()
       hour=t[3]
       print_line(str(hour),1,1)
     elif working_idx==7:
       # Display minute
       t = ds.get_time()
       minute=t[4]
       print_line(str(minute),1,1)
     elif working_idx==8:
       # Display wkday
       t = ds.get_time()
       wkday=t[6]
       print_line(wkdays[wkday-1],1,1)
   # CONFIGURATION MODE
   elif isPress==True:
     if working_idx==3:
       # Edit year
       year+=rotary_dir
       print_line(str(year),1,1)
     elif working_idx==4:
       # Edit month
       month+=rotary_dir
       if month < 1:
         month = 1
       elif month > 12:
         month = 12
       print_line(months[month-1],1,1)
     elif working_idx==5:
       # Edit day
       day+=rotary_dir
       if day < 0:
         day = 0
       elif day > 31:
         day = 31
       print_line(str(day),1,1)
     elif working_idx==6:
       # Edit hour
       hour+=rotary_dir
       if hour < 0:
         hour = 0
       elif hour > 23:
         hour = 23
       print_line(str(hour),1,1)
     elif working_idx==7:
       # Edit minute
       minute+=rotary_dir
       if minute < 0:
         minute = 0
       elif minute > 59:
         minute = 59
       print_line(str(minute),1,1)
     elif working_idx==8:
       # Edit week day
       wkday+=rotary_dir
       if wkday < 1:
         wkday = 1
       elif wkday > 7:
         wkday = 7
       print_line(wkdays[wkday-1],1,1)
 # Prints the initial menus
 process_menu()
 while True:
   # Creates 200 ms interval
   if ticks_ms() - prev_time >= 200:
     # Checks only for the switch when index is more than 2
     # If switch is press, toggle the state of isPress variable
     # If isPress is True, config for editing
     # If isPress is False back again, save the configs.
     if rsw.value()==1 and working_idx>2:
       isPress = not isPress
       if isPress==True:
         process_menu()
         isSaved=False
       if isPress==False and isSaved==False:
         isSaved=True
         t = ds.get_time()
         if working_idx==3:
           ds.set_time(year,t[1],t[2],t[3],t[4],t[5],t[6],t[7])
         elif working_idx==4:
           ds.set_time(t[0],month,t[2],t[3],t[4],t[5],t[6],t[7])
         elif working_idx==5:
           ds.set_time(t[0],t[1],day,t[3],t[4],t[5],t[6],t[7])
         elif working_idx==6:
           ds.set_time(t[0],t[1],t[2],hour,t[4],t[5],t[6],t[7])
         elif working_idx==7:
           ds.set_time(t[0],t[1],t[2],t[3],minute,t[5],t[6],t[7])
         elif working_idx==8:
           ds.set_time(t[0],t[1],t[2],t[3],t[4],t[5],wkday,t[7])
     # Read the rotary encoder values for processing
     val_new = r.value()
     if val_old != val_new:
       if val_old == 0 and val_new == 19:
         val_dif = -1
       elif val_old == 19 and val_new == 0:
         val_dif = 1
       else:
         val_dif = val_new - val_old
       process_menu(val_dif)
       val_old = val_new
     # Blink the onboard LED during config mode
     if isPress:
       led.value(not led.value())
     else:
       led.value(0)
     # Save the current timer counter
     prev_time = ticks_ms()

# ds3231_port.py Portable driver for DS3231 precison real time clock.
 # Adapted from WiPy driver at https://github.com/scudderfish/uDS3231
 # Author: Peter Hinch
 # Copyright Peter Hinch 2018 Released under the MIT license.
 import utime
 import machine
 import sys
 DS3231_I2C_ADDR = 104
 try:
   rtc = machine.RTC()
 except:
   print('Warning: machine module does not support the RTC.')
   rtc = None
 def bcd2dec(bcd):
   return (((bcd & 0xf0) >> 4) * 10 + (bcd & 0x0f))
 def dec2bcd(dec):
   tens, units = divmod(dec, 10)
   return (tens << 4) + units
 def tobytes(num):
   return num.to_bytes(1, 'little')
 class DS3231:
   def __init__(self, i2c):
     self.ds3231 = i2c
     self.timebuf = bytearray(7)
     if DS3231_I2C_ADDR not in self.ds3231.scan():
       raise RuntimeError("DS3231 not found on I2C bus at %d" % DS3231_I2C_ADDR)
   def get_time(self, set_rtc=False):
     if set_rtc:
       self.await_transition() # For accuracy set RTC immediately after a seconds transition
     else:
       self.ds3231.readfrom_mem_into(DS3231_I2C_ADDR, 0, self.timebuf) # don't wait
     return self.convert(set_rtc)
   def convert(self, set_rtc=False): # Return a tuple in localtime() format (less yday)
     data = self.timebuf
     ss = bcd2dec(data[0])
     mm = bcd2dec(data[1])
     if data[2] & 0x40:
       hh = bcd2dec(data[2] & 0x1f)
       if data[2] & 0x20:
         hh += 12
     else:
       hh = bcd2dec(data[2])
     wday = data[3]
     DD = bcd2dec(data[4])
     MM = bcd2dec(data[5] & 0x1f)
     YY = bcd2dec(data[6])
     if data[5] & 0x80:
       YY += 2000
     else:
       YY += 1900
     # Time from DS3231 in time.localtime() format (less yday)
     result = YY, MM, DD, hh, mm, ss, wday -1, 0
     if set_rtc:
       if rtc is None:
         # Best we can do is to set local time
         secs = utime.mktime(result)
         utime.localtime(secs)
       else:
         rtc.datetime((YY, MM, DD, wday, hh, mm, ss, 0))
     return result
 #   def save_time(self):
 #     (YY, MM, mday, hh, mm, ss, wday, yday) = utime.localtime() # Based on RTC
 #     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 0, tobytes(dec2bcd(ss)))
 #     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 1, tobytes(dec2bcd(mm)))
 #     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 2, tobytes(dec2bcd(hh))) # Sets to 24hr mode
 #     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 3, tobytes(dec2bcd(wday + 1))) # 1 == Monday, 7 == Sunday
 #     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 4, tobytes(dec2bcd(mday))) # Day of month
 #     if YY >= 2000:
 #       self.ds3231.writeto_mem(DS3231_I2C_ADDR, 5, tobytes(dec2bcd(MM) | 0b10000000)) # Century bit
 #       self.ds3231.writeto_mem(DS3231_I2C_ADDR, 6, tobytes(dec2bcd(YY-2000)))
 #     else:
 #       self.ds3231.writeto_mem(DS3231_I2C_ADDR, 5, tobytes(dec2bcd(MM)))
 #       self.ds3231.writeto_mem(DS3231_I2C_ADDR, 6, tobytes(dec2bcd(YY-1900)))
   # Modified by George Bantique / April 19, 2021
   # to add manual saving of time.
   def set_time(self, YY, MM, mday, hh, mm, ss, wday, yday):
     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 0, tobytes(dec2bcd(ss)))
     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 1, tobytes(dec2bcd(mm)))
     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 2, tobytes(dec2bcd(hh))) # Sets to 24hr mode
     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 3, tobytes(dec2bcd(wday + 1))) # 1 == Monday, 7 == Sunday
     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 4, tobytes(dec2bcd(mday))) # Day of month
     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 5, tobytes(dec2bcd(MM)))
     self.ds3231.writeto_mem(DS3231_I2C_ADDR, 6, tobytes(dec2bcd(YY-1900)))
 #   # Wait until DS3231 seconds value changes before reading and returning data
 #   def await_transition(self):
 #     self.ds3231.readfrom_mem_into(DS3231_I2C_ADDR, 0, self.timebuf)
 #     ss = self.timebuf[0]
 #     while ss == self.timebuf[0]:
 #       self.ds3231.readfrom_mem_into(DS3231_I2C_ADDR, 0, self.timebuf)
 #     return self.timebuf
 #   # Test hardware RTC against DS3231. Default runtime 10 min. Return amount
 #   # by which DS3231 clock leads RTC in PPM or seconds per year.
 #   # Precision is achieved by starting and ending the measurement on DS3231
 #   # one-seond boundaries and using ticks_ms() to time the RTC.
 #   # For a 10 minute measurement +-1ms corresponds to 1.7ppm or 53s/yr. Longer
 #   # runtimes improve this, but the DS3231 is "only" good for +-2ppm over 0-40C.
 #   def rtc_test(self, runtime=600, ppm=False, verbose=True):
 #     if rtc is None:
 #       raise RuntimeError('machine.RTC does not exist')
 #     verbose and print('Waiting {} minutes for result'.format(runtime//60))
 #     factor = 1_000_000 if ppm else 114_155_200 # seconds per year
 #
 #     self.await_transition() # Start on transition of DS3231. Record time in .timebuf
 #     t = utime.ticks_ms() # Get system time now
 #     ss = rtc.datetime()[6] # Seconds from system RTC
 #     while ss == rtc.datetime()[6]:
 #       pass
 #     ds = utime.ticks_diff(utime.ticks_ms(), t) # ms to transition of RTC
 #     ds3231_start = utime.mktime(self.convert()) # Time when transition occurred
 #     t = rtc.datetime()
 #     rtc_start = utime.mktime((t[0], t[1], t[2], t[4], t[5], t[6], t[3] - 1, 0)) # y m d h m s wday 0
 #
 #     utime.sleep(runtime) # Wait a while (precision doesn't matter)
 #
 #     self.await_transition() # of DS3231 and record the time
 #     t = utime.ticks_ms() # and get system time now
 #     ss = rtc.datetime()[6] # Seconds from system RTC
 #     while ss == rtc.datetime()[6]:
 #       pass
 #     de = utime.ticks_diff(utime.ticks_ms(), t) # ms to transition of RTC
 #     ds3231_end = utime.mktime(self.convert()) # Time when transition occurred
 #     t = rtc.datetime()
 #     rtc_end = utime.mktime((t[0], t[1], t[2], t[4], t[5], t[6], t[3] - 1, 0)) # y m d h m s wday 0
 #
 #     d_rtc = 1000 * (rtc_end - rtc_start) + de - ds # ms recorded by RTC
 #     d_ds3231 = 1000 * (ds3231_end - ds3231_start) # ms recorded by DS3231
 #     ratio = (d_ds3231 - d_rtc) / d_ds3231
 #     ppm = ratio * 1_000_000
 #     verbose and print('DS3231 leads RTC by {:4.1f}ppm {:4.1f}mins/yr'.format(ppm, ppm*1.903))
 #     return ratio * factor
 #   def _twos_complement(self, input_value: int, num_bits: int) -> int:
 #     mask = 2 ** (num_bits - 1)
 #     return -(input_value & mask) + (input_value & ~mask)
 #   def get_temperature(self):
 #     t = self.ds3231.readfrom_mem(DS3231_I2C_ADDR, 0x11, 2)
 #     i = t[0] << 8 | t[1]
 #     return self._twos_complement(i >> 6, 10) * 0.25
